The welding system host adopts 50kHz full bridge soft switch, AC and DC output, pure digital current loop linear servo lifting technology; the host is equipped with 5 welding interfaces, which can realize simultaneous welding operations by different types of welding terminals.The rated welding current of the equipment can reach 2000A
PRODUCT FEATURES
A. Circuit topology: 50 kHz full bridge soft switching + AC / DC output technology
B. Current control technology: 100k hardware digital current closed loop control
C. Control system architecture: arm + FPGA
D. Man machine interface: 8-inch programming interface, support multi language
operation
E. Integrated RJ45, USB interface: support a variety of protocols, adapt to the
mainstream fieldbus
F. Datalogger supports database and mass storage
G. Weld NIC group control software

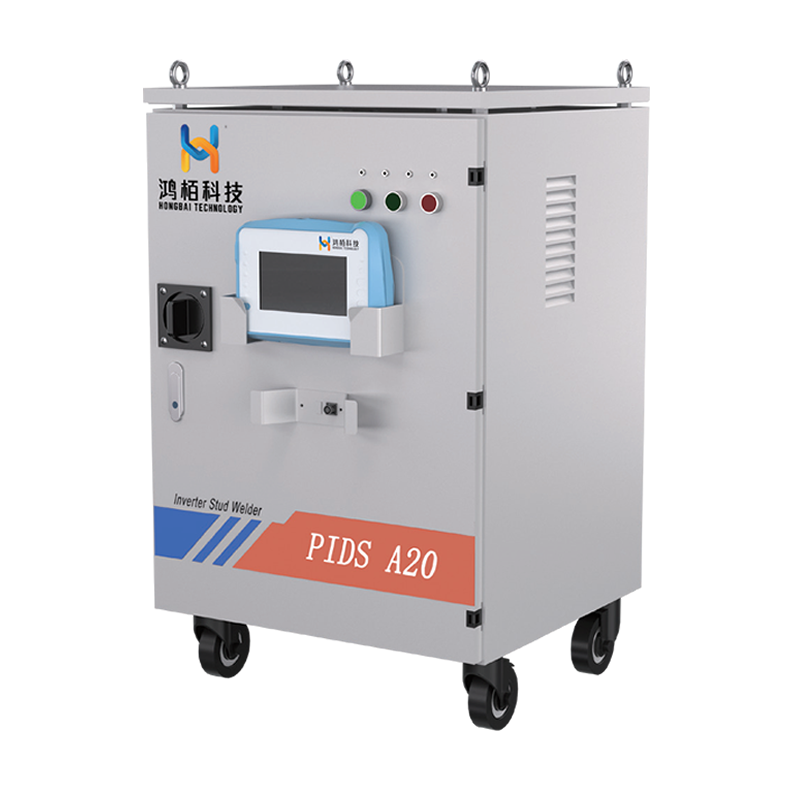

| Model | PIDS-A20AT |
|---|---|
| Operation Mode | Manual/Semi-Automatic/Automatic |
| Supported Stud Material | Steel Stud |
| Communication Bus | DeviceNet, Profinet, Profibus, CC-Link, EtherNet/IP, etc. |
| Servo Drive | Integrated |
| Input Power | AC 3*380±15% 50~60Hz |
| Output Power | 120kW |
| No-Load Voltage | 110V |
| Welding Current Range | 100-2000A |
| Welding Current Control Accuracy Error | ≤2% |
| Welding Time Adjustment Range | 5~150ms |
| Stud Diameter Range | 3-12mm |
| Rated Duty Cycle | 2% |
| Weight | 138kg |
| Dimensions | mm*mm*mm |
