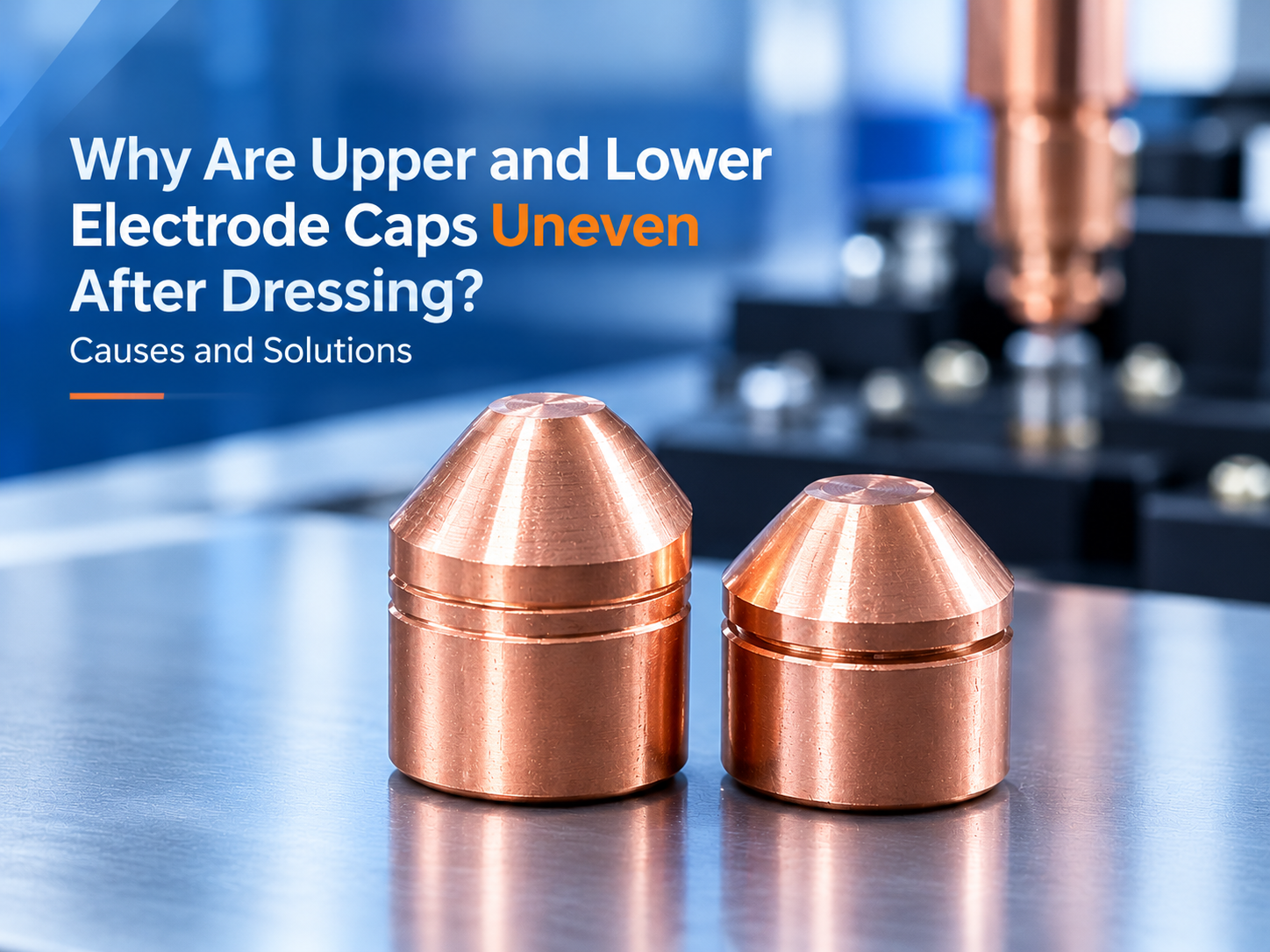

In automotive body-in-white (BIW) production, resistance spot welding electrodes are subjected to repeated pressure, heat, and material transfer. Regular electrode tip dressing is essential to restore the required weld face geometry and maintain consistent welding conditions. However, a common problem on production lines is that the upper and lower electrode caps have different protruding lengths after dressing. One electrode appears higher than the other, even though both electrodes have been processed by the same dressing unit. Why does this happen when the dressing unit is designed to dress both electrodes simultaneously? The key is to distinguish between initial electrode length differences, unequal material removal, and electrode alignment errors. Identifying the actual cause helps maintenance engineers correct the problem without unnecessary parameter changes or repeated production interruptions. Hongbai Technology provides electrode cap dressing equipment and AI vision inspection solutions for automotive welding applications, supporting more consistent electrode maintenance and quality inspection. 1. Understanding the Causes of Uneven Electrode Cap Projection During resistance spot welding, electrode caps gradually wear and their weld faces may become enlarged, deformed, or contaminated. Electrode tip dressing removes excess material and restores the required weld face geometry. In a properly configured dressing system, the upper and lower electrodes are processed according to the equipment’s design and the specified dressing parameters. However, simultaneous dressing does not necessarily mean that both electrode caps will have identical final projection lengths. The final result depends on three main factors: Initial projection: The upper and lower electrode caps may already have different protruding lengths before dressing. Material removal: The amount of material removed from each electrode may differ. Mechanical alignment: Electrode misalignment or an incorrect dressing position may affect the cutting process and the resulting geometry. To investigate the problem, measure both electrodes before and after dressing. This helps determine whether the…
