Product Introduction

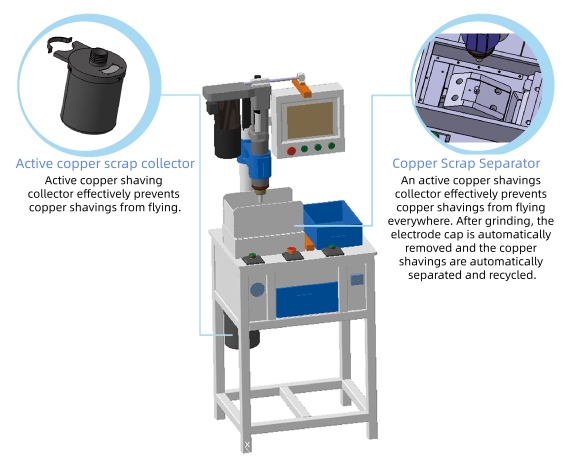

The electrode cap centralized grinding machine is a convenient offline centralized grinding device for electrode caps. It utilizes a high-power motor for greater power, features a user-friendly touchscreen design, and offers enhanced safety with dual protection via a safety light curtain and two-hand safety buttons. Different tools and mounting rods can be used to meet various on-site electrode cap grinding needs.
Product Features
- Driven by a 380V three-phase motor, grinding speed 350RPM.
- Offline centralized grinding method improves grinding efficiency.
- Touchscreen allows for setting appropriate parameters for electrode cap grinding.
- Electrode caps can be placed manually or automatically, and grinding is completed automatically.
- After grinding, the electrode caps are automatically removed and separated from copper shavings for recycling.
Product Specifications
| Model | HBXMQ-010 |
|---|---|
| Rated Input Power | 1.3KW |
| Power Supply | |
| Frequency | 50HZ±2% |
| Grounding Method | TN-S |
| Phase Current | ≤10A |
| Disassembly Speed | |
| Grinding Speed | 300-500rpm |
| Cap Removal Time | |
| Electrode Size | 13-20mm |
| Swing Arm Drive Method | |
| Swing Arm Angle | |
| Torque | |
| Number of Magazine Electrode Caps | |
| Compressed Air Pressure | |
| Grinding Pressure |
