Product Introduction

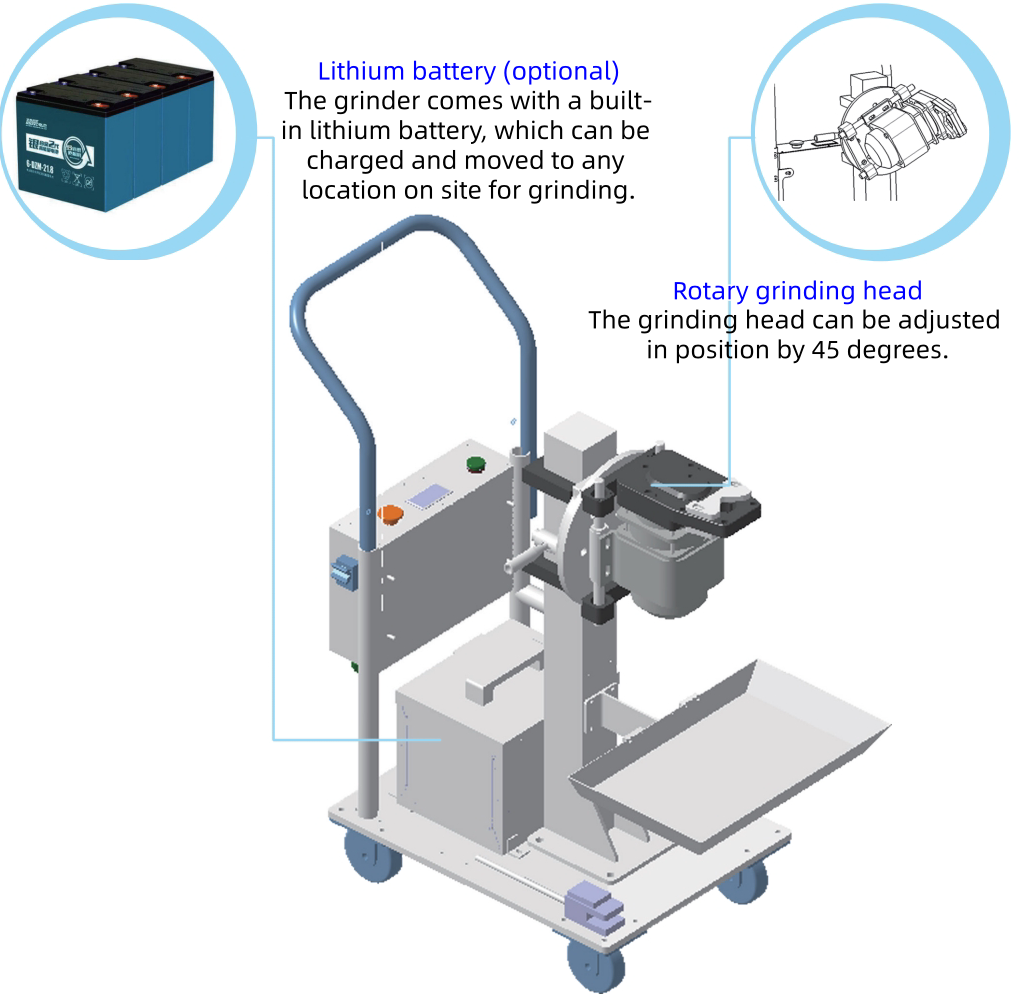

This product is a portable electrode grinding machine with a built-in rechargeable lithium battery.It uses carbide coated blades, enabling high-speed grinding. It can simultaneously grind the electrode caps of both the upper and lower electrodes of the spot welding clamp, ensuring concentric and perfectly aligned electrode end faces after grinding. The integrated upper and lower blades offer a long service life.It also includes a built-in lithium battery and a moving roller device, ensuring a clean and aesthetically pleasing work process while providing easy mobility.
Product Features
- Motor-driven, grinding speed 300-500 RPM
- Available in both lithium battery and non-lithium battery versions
- Equipped with a moving roller device for convenient and quick movement and strong adaptability
- Upper and lower motors can perform grinding simultaneously, resulting in high grinding efficiency
- Equipped with a rotating grinding head, adaptable to both horizontal and vertical grinding methods.
Product Specifications
| Model | HBXMQ-006 |
|---|---|
| Rated Input Power | 1.3KW |
| Power Supply | Single-phase AC 220V±10% |
| Frequency | |
| Grounding Method | TN-S |
| Phase Current | ≤10A |
| Removal Speed | 20-120rpm (Adjustable) |
| Grinding Speed | 300-500rpm |
| Cap Removal Time | |
| Electrode Size | 13-20mm |
| Swing Arm Drive Method | |
| Swing Arm Angle | |
| Torque | 30N.m |
| Number of Magazine Electrode Caps | |
| Compressed Air Pressure | |
| Grinding Pressure | |
