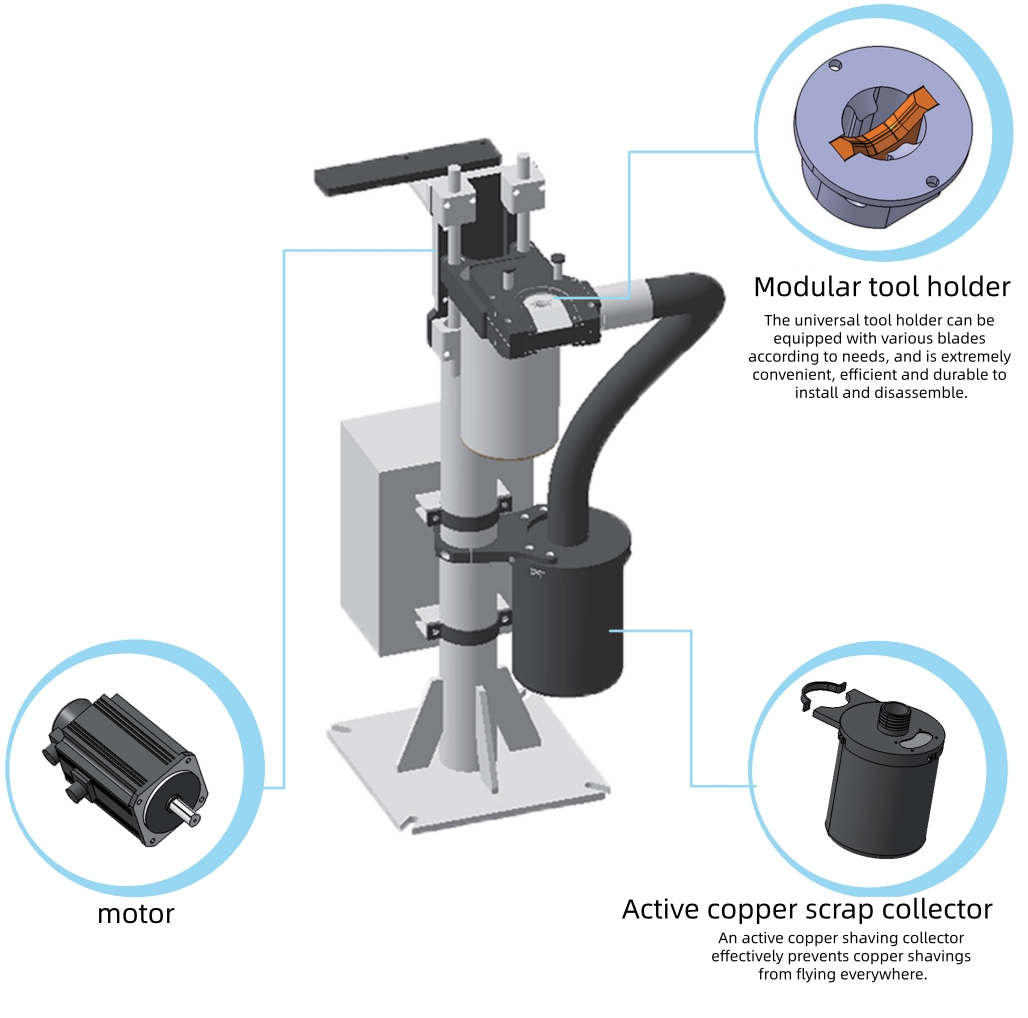

This fixed electrode cap grinding machine employs a high-speed precision grinding disc and intelligent servo pressure control technology. Equipped with a self-developed five-jaw pneumatic assembly/disassembly module, it can accurately clamp, grind, and automatically replace electrode caps of various sizes (Φ13-20mm). The equipment features an independent, large-capacity copper shavings collection system and a self-diagnostic function, allowing for seamless integration into robotic or semi-automatic spot welding stations, supporting continuous, unmanned production. The rated grinding capacity exceeds 60 cycles per hour.
PRODUCT FEATURES
A. Mechanical Structure: Employs a high-rigidity integral cast iron base and a fully sealed dustproof design.
B. Grinding Control Technology: Servo motor drive, grinding speed steplessly adjustable from 0-650 RPM, adaptive pressure compensation.
C. Electrical Control Architecture: ARM + PLC dual-core system, ensuring real-time control and logic stability.
D. Human-Machine Interface: 7-inch color HMI touchscreen, supporting Chinese/English/Japanese multilingual operation and real-time parameter monitoring.
E. Communication Interface: Standard PNP 24V IO port, optional Profinet, DeviceNet, EtherNet/IP and other mainstream fieldbuses.
F. Data Function: Integrated data logger, capable of storing grinding cycles, cutter head life, fault history, and supporting process traceability.
G. Equipment Management: Supports RS-485 or Ethernet networking, enabling centralized monitoring and maintenance early warning in conjunction with the workshop MES system.
| Brand | HongBai |
|---|---|
| Model | HBXMQ-001 |
| Rated input power | 1.3KW |
| Power supply | Three-phase AC 380V ± 10% |
| Grounding method | TN-S |
| Phase current | ≤10A |
| Frequency | 50HZ±2% |
| Grinding speed | 300-500rpm |
| Cap removal time | |
| Electrode size | Φ13 – Φ20 mm |
| Torque | |
| Number of magazine electrode caps | |
| Size | |
| Weight (kg) | |
| Global Trade Item Number (GTIN) | |
| Country/Region of origin | China |
| CE certification | Yes |
