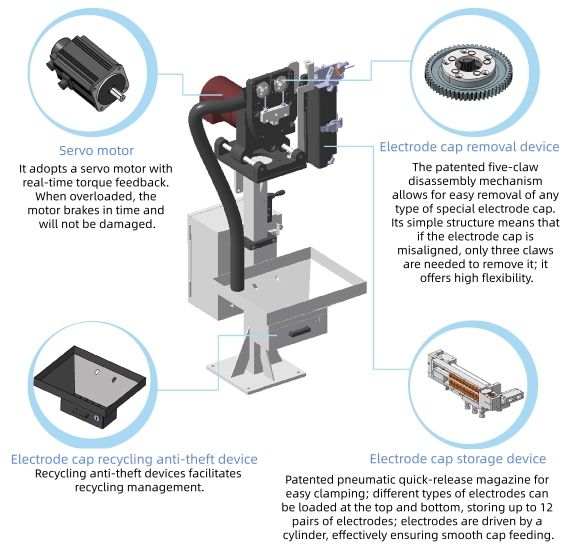

This product is specifically designed for automated welding production lines and only features electrode cap removal; it lacks a grinding function. It employs a servo motor drive and worm gear transmission, with five ratchet pawls forming a balanced removal structure to ensure even force distribution and smooth operation during the removal process. The product comes standard with a pneumatic quick-release magazine, enabling automatic removal and retrieval of the electrode cap.
Product features：
A.Servo Drive and Real-Time Feedback: Utilizes a 220V single-phase servo motor drive with real-time torque feedback. In case of overload, the motor can brake promptly, effectively protecting the equipment.
B.Dedicated Disassembly Mechanism: Employs a five-jaw balanced disassembly structure, which is compact, easy to operate, and has a wide disassembly range suitable for electrode caps from Φ13 to Φ20mm.
C. Safe and Reliable: Equipped with an electrode cap disassembly and assembly detection system, providing full monitoring to ensure safe, reliable, and precise disassembly operations.
D. Multiple Installation Positions: Offers horizontal, vertical, and upright installation positions to flexibly adapt to different welding clamp types.
E.Flexible Communication Interface: Equipped with external ports to meet various on-site communication needs. The standard port is a 24VDC NPN type IO, with optional mainstream industrial buses such as DeviceNet, Profinet, and Profibus.
F.Anti-Theft Recycling Design: Includes a built-in anti-theft device for electrode cap recycling, facilitating recycling management and on-site 5S practices.
Device parameters：
| Brand | HongBai |
|---|---|
| Model | HBXMQ-007 |
| Rated input power | 1.3KW |
| Power supply | Single-phase AC 220V ±10% |
| Grounding method | TN-S |
| Phase current | ≤10A |
| Disassembly speed | 20 – 120 rpm (adjustable) |
| Grinding speed | |
| Cap removal time | 22s |
| Electrode size | 13-20mm |
| Torque | |
| Number of magazine electrode caps | The magazine can hold up to 12 pairs of electrodes.. |
| Size | |
| Weight (kg) | |
| Global Trade Item Number (GTIN) | |
| Country/Region of origin | China |
| CE certification | |
