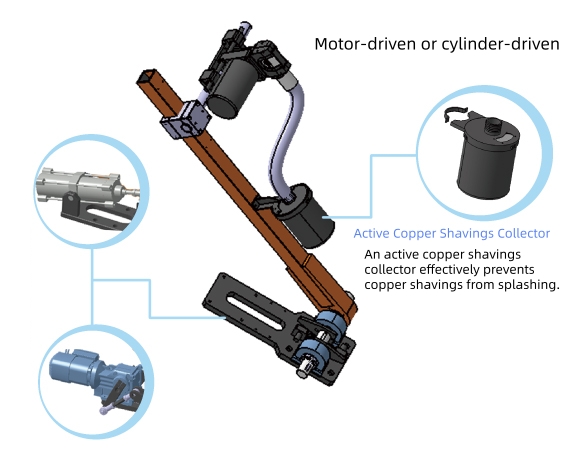

The swing-arm regrinding machine’s external communication interface supports hard I/O ports and multiple bus interfaces (configurable according to site requirements). Utilizing carbide-coated blades, it enables high-speed regrinding and can simultaneously regrind the upper and lower electrode caps of the spot welding clamp, ensuring concentric and perfectly aligned electrode end faces after regrinding. The equipment is equipped with an automatic copper shavings collector, effectively maintaining a clean and aesthetically pleasing work area. Its unique swing-arm function allows for flexible position adjustment within a 90° range, precisely adapting to the electrode cap regrinding needs of fixed welding clamps or robotic spot welding clamps, significantly improving the applicability and automation level of the production line.

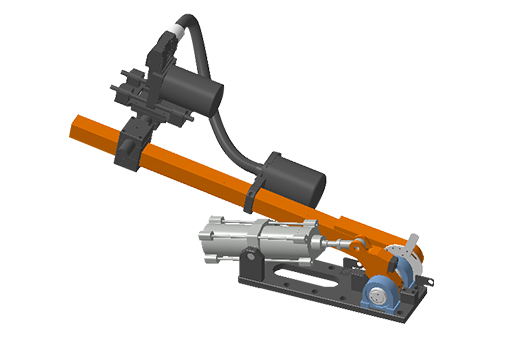

Pneumatic swing arm electrode cap grinding machine
Product Features:
A. Standard swing arm height: 2 meters
B. Equipped with external ports to meet various on-site communication requirements
C. Uses imported cylinders to drive the swing arm, allowing for adjustment to any position within 90°, facilitating the grinding of the electrode cap on the welding clamp
D. Standard port configuration: 24VDC PNP type IO; optional Devicenet, Profinet, Profibus, etc.

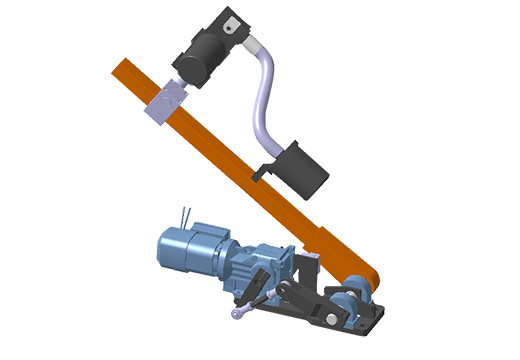

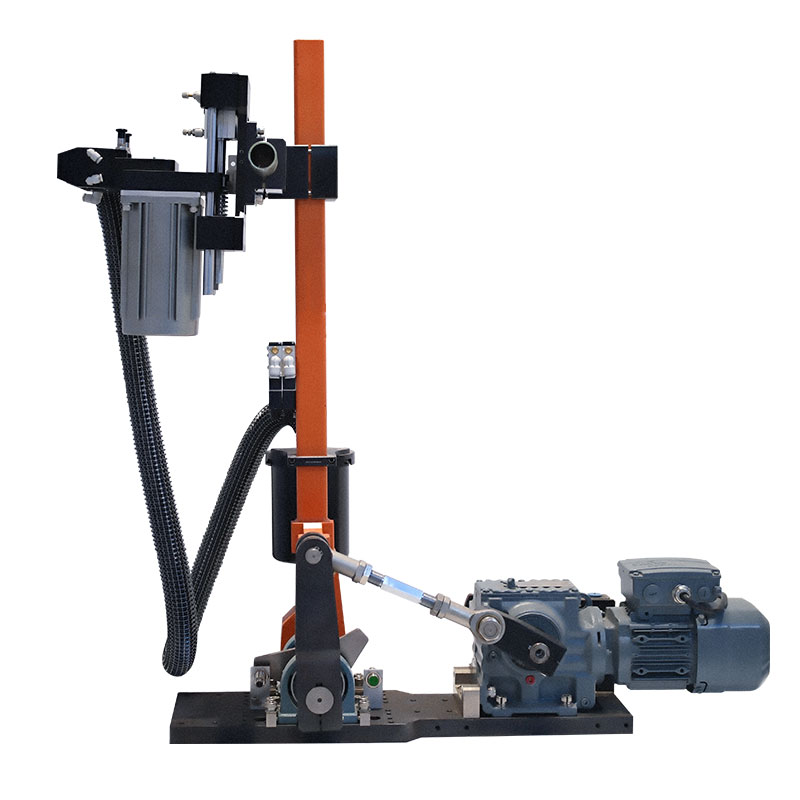

Electric swing arm electrode cap grinding machine
Product Features:
A.380V three-phase motor drive, 280RPM grinding speed
B.Standard swing arm height 1 meter
C.Equipped with external ports to meet different on-site communication requirements
D.Uses an imported geared motor to drive the swing arm, capable of adjusting to any position within 90° to complete the grinding of the electrode cap of the welding clamp
E. Standard port configuration: 24V DCPNP type IO; optional Devicenet, Profinet, Profibus, etc.
